PRODUCT DETAILS

Description

UNIT SONIC I2Cis anI2Cinterface ultrasonic distance sensor. This allows for easy I2C integration and multi-sensor operation using a single BUS, to save I/O resources. The module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach2cm-450cm(accuracy up to ±2%). It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.

Product Features

  • RCWL-9620 Chip

  • I2C communication interface (addr: 0x57)

  • Measuring range: 2cm-450cm

  • Protective housing

  • Built-in temperature compensation, reduce the temperature drift

  • Support UIFlow platform

Includes

  • 1x Unit UNIT SONIC I2C

  • 1x HY2.0-4P cable (20cm)

Application

  • Robot Obstacle Avoidance

  • Fluid Level Detection

  • Sitting Posture Detection

Specifications


Specifications

Parameters

Ultrasonic Ranging Single Chip

RCWL-9620

Range

2cm-450cm

Probe Specifications

16mm

Receiving/Transmitting Frequency

40KHz

Receiving sensitivity

-65dB

Pointing angle

60°

Measurement accuracy

±2%

Working current

2mA

Net weight

10g

Gross weight

25g

Product size

56 * 24 * 15mm

Packing size

76 * 47 * 29mm

LEARN AND DOCUMENTS

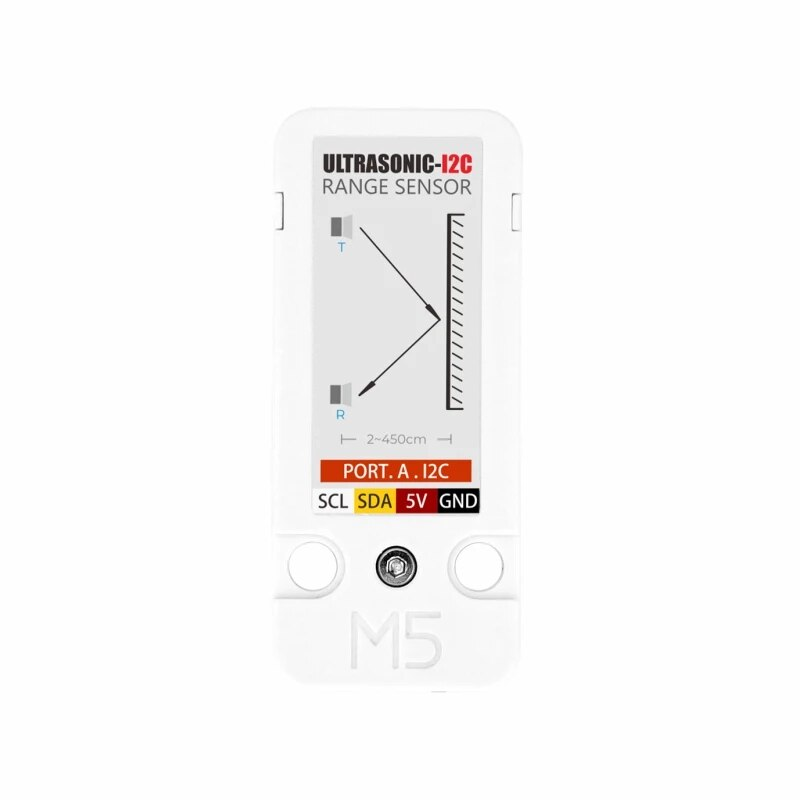

Official Ultrasonic Distance Unit I2C (RCWL-9620)

SKU: d18deaf1-967f-4a12-8043-cc2d2326bf65
₪7.06Price
