PRODUCT DETAILS

Description

ToF that employs time-of-flight techniques to resolve distance between the emit point and the reach point of a subject, measuring the round trip time of an artificial light signal provided by a laser.

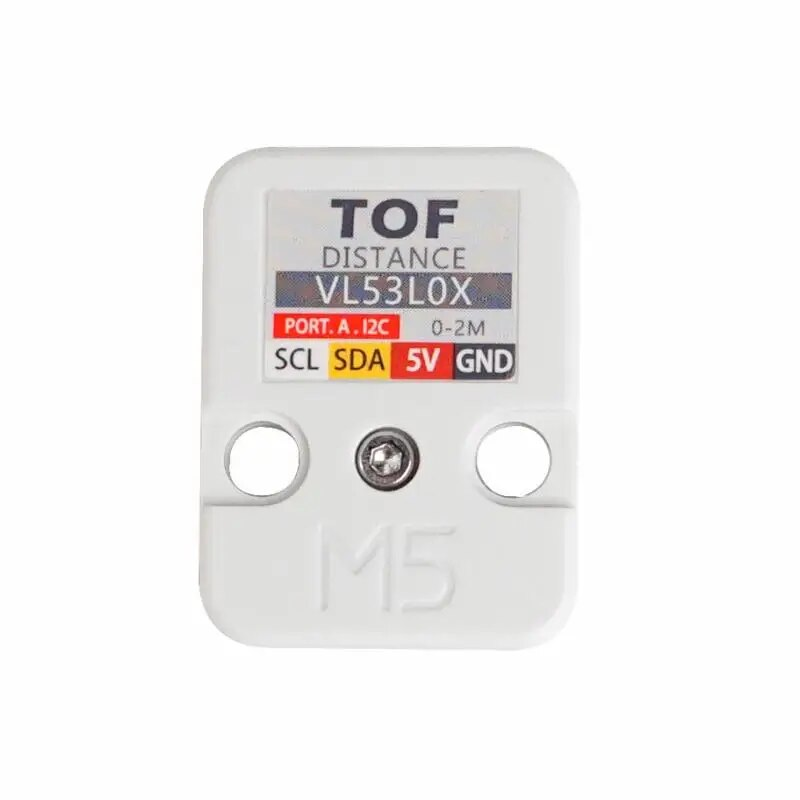

This unit integrated a distance measuring sensor VL53L0x providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2m in less than 30ms.

This unit communicates with M5Core via I2C(0x29).


In this case, make sure you use the 3.3V on SDA and SCL, M5Core GROVE provide 3.3V to data pins, 5V to power pin. only 3.3v allowed on VL53L0x.


Product Features


High precision

Measure absolute distances up to 2m

Measurement accuracy ±3%

The wavelength of laser: 940nm

Program Platform: Arduino, UIFlow(Blockly, Python)

Two Lego-compatible holes


Include


1x ToF Unit

1x Grove Cable


Applications


1D gesture recognition

Laser Ranging

3D structured light imaging(3D sensing)

Camera assist (ultra fast autofocus and depth of field)


Specification




Resources

Parameter





Measuring distance

0.3-2m



Measurement accuracy

±3%



Net weight

4g



Gross weight

17g



Product Size

32*24*8mm



Package Size

67*53*12mm
