PRODUCT DETAILS

Description

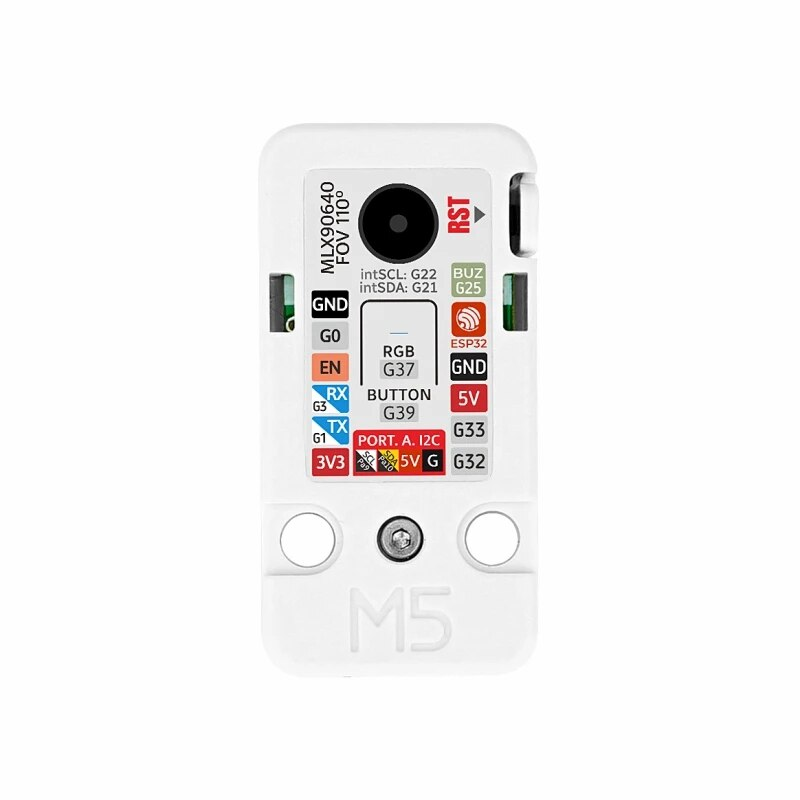

UNIT Thermal2 is a data processing MCU-equipped MLX90640 thermal imaging acquisition unit. It has 32x24 imaging pixels, a field of view of 110°x75°, and a temperature measurement range of -40°C to 300°C. The MCU uses ESP32, which is capable of high and low temperature alarms, average, maximum and minimum values reading, and data caching via data processing. The board integrates with a buzzer, RGB indicator, function and reset buttons, and communicates with the host computer through I2C. This product can be used together with the host computer or separately, and is applicable for temperature measurement and abnormal alarms.

Features

  • MCU:ESP32-PICO-D4

  • MLX90640 Infrared (IR) Sensor

  • Reset buttom

  • Passive buzzer

  • Integrated programmable RGB LED

  • GROVE I2C/HY2.0-4Pinterface

  • Programming platform: Arduino/UIFlow

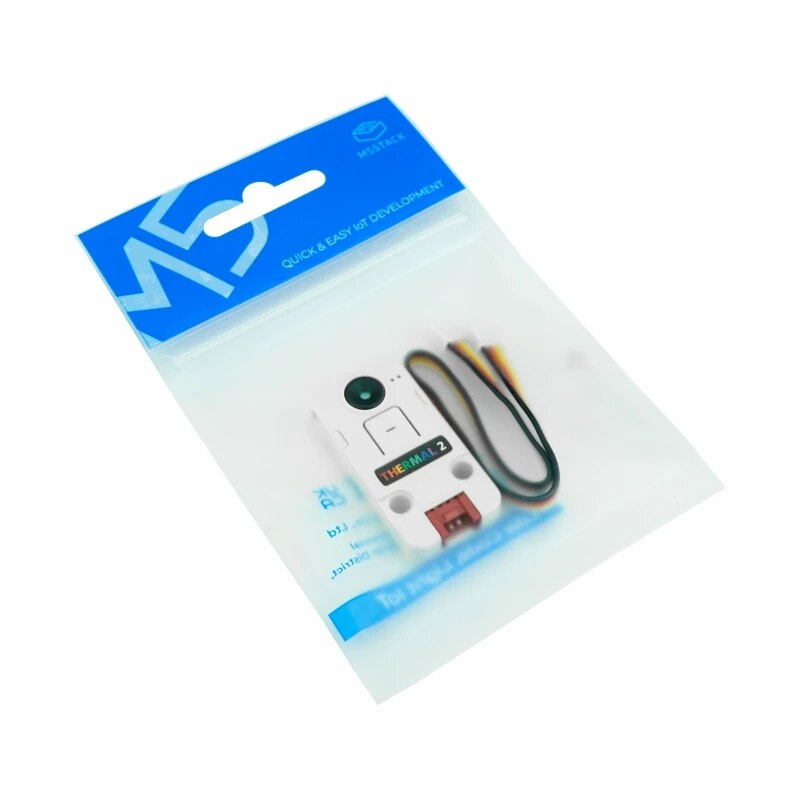

Includes

  • 1x THERMAL2 Unit

  • 1x HY2.0-4P cable

Applications

  • High-precision non-contact temperature measurement

  • Motion detection

  • Visual infrared thermometer

  • DIY Projects

Specification


Resources

Parameters

MCU

ESP32-PICO-D4

SENSOR

MLX90640

POWER

5V @ 0.5A

Field of View

110°×75°

Measurement Range

-40°C ~ 300°C

Resolution

32 x 24

Refresh Rate

0.5Hz-64Hz

Operating temperature

-10°C ~ 60°C

Housing material

Plastic ( PC )

Product Size

48mm × 24mm ×8mm

Package Size

136mm × 92mm × 13mm

Product Weight

4.9g

Package Weight

10.7g

LEARN AND DOCUMENTS


Official Thermal Camera 2 Unit (MLX90640) -110 Degree Fov

SKU: 1b54bc11-8464-4329-82e4-eef0388ce91d
₪79.58Price
