Description

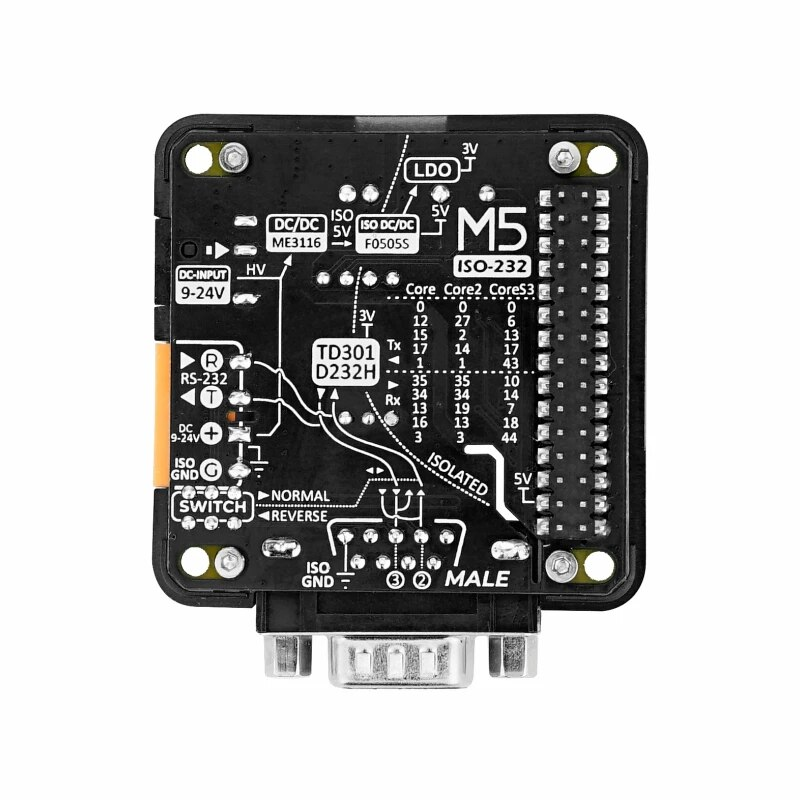

RS232M Module 13.2 is an expansion module of RS232 serial communication with isolation, using the scheme of TD301D232H serial port conversion chip + male DB9 interface to realize the interface conversion between RS232 and TTL/CMOS logic level signals, and using F0505S-2WR3 DC-DC power module to realize electrical and noise isolation functions, toggle switch and coding switch It can realize the pass-through or cross-switching of DB9 signal lines and the switching of serial interfaces to meet different connection needs. The module has a built-in DC power input socket and a corresponding DC-DC circuit to provide power to the entire device. The product is suitable for industrial automation, instrumentation, medical equipment and communication equipment.
Features
TD301D232H serial port chip, support full duplex, fast and reliable
F0505S-2WR3 Electrical and noise isolation
Toggle switches and coded switches switch line sequence and GPIO
Programming platform: Arduino, UIFlow
Includes
1 × RS232M Module 13.2
Applications
Industrial automation
Instrumentation
Medical equipment
Communication equipment
Specification

Resources
Parameters
RS232
TD301D232H
DC-DC isolation
F0505S-2WR3
Communication rate
up to 115200bps
Communication method
DB9 male interface with full-duplex communication and interface conversion between RS232 and TTL/CMOS logic level signals
Operating temperature
0-40°
DC power interface input voltage
0-24V
Product Size
54*54*13.2mm
Package Size
88*61*21mm
Product Weight
28g
Package Weight
60g


Related Link
Schematic
Module Size
Examples
Arduino
UIFlow
UIFlow Blocks
Init
Write text a line
Write text
Write raw data list
Read all bytes
Read characters
Read bytes a line
Remain cache
