PRODUCT DETAILS

Description

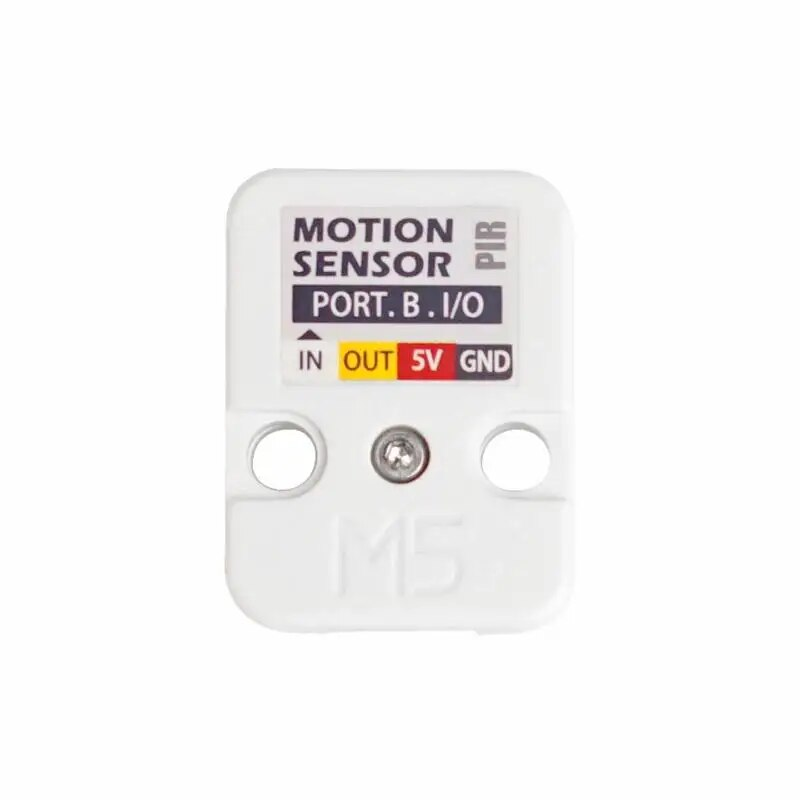

PIR is a human body infrared unit. It belongs to the "passive pyroelectric infrared detector". It detects the infrared radiation emitted and reflected by the human body or object. When infrared is detected, the output level is high and it takes a while. Delay (high during the period and allow repeated triggers) until the trigger signal disappears (restores low).

This Unit communicates with the M5Core via the GROVE B.

Notice: This Unit has 2s delay time.

Product Features



Detects the distance: 500cm



latency time: 2s



Sensing range: < 100°



Quiescent current: < 60uA



Operating temperature: -20 - 80 °C



GROVE interface, support and



Two Lego installation holes



Include



1x PIR unit



1x GROVE Cable



Applications



Human body Induction Lamp



Security Product



Automatic Induction Appliance Settings



Specification





Resources



Parameter







Net weight



5g





Gross weight



20g





Product Size



32*24*12mm





Package Size



60*57*17mm
