PRODUCT DETAILS
Description

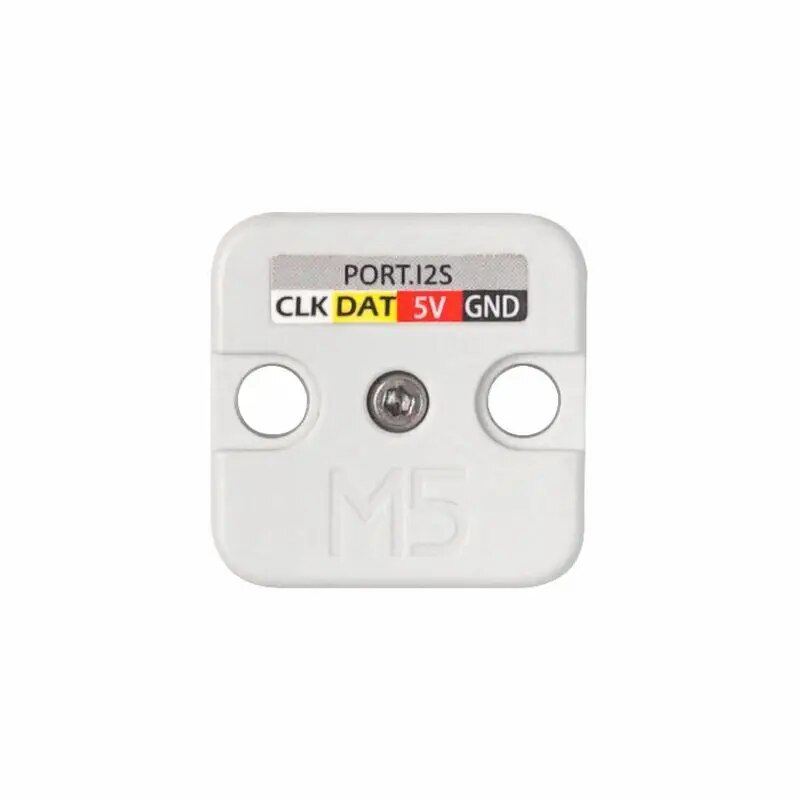

PDM mini Unit is a digital MEMS silicon-based microphone based on PDM (Pulse Density Modulation) signal. The microphone has high signal-to-noise ratio, high sensitivity, low power consumption, anti-radio frequency interference, smooth frequency response and other characteristics. It automatically switches the microphone state according to the clock frequency (power down/activate/sleep)and can be widely used for audio data collection on wearable devices and smart digital devices.
Product Features


I2S PORT,PDM encoding output (CLK/DAT)

High sensitivity, high signal to noise ratio

Low power consumption

Anti-radio frequency interference

Compatible with LEGO


Include


1x PDM mini Unit

1x HY2.0 4P Cable(5CM)


Applications


Spectrum Analyzer

Recorder

Noise meter


Specification




Resources

Parameter





 Sensitivity

 94dB SPL@1KHz Nom.:-22dBFS



 Signal to Noise Ratio

 94dB SPL@1KHz,A-weighted Nom.:61.4dB



 Total Harmonic Distortion

 100dB SPL@1KHz Nom.:1%



 Working voltage range

 1.6 V to 3.6 V



 Working Current

 600µA



Net Weight

4g



Gross Weight

8g



Product Size

24*24*13mm



Package Size

35*36*18mm



Case material

Plastic(PC)
