PRODUCT DETAILS
Description
Core2 for AWSis the reference hardware kit for AWS IoT EduKit – a prescriptive learning program from AWS which makes it easy and cost effective to learn how to build IoT applications using AWS services. It comes equipped with a Microchip ATECC608pre-provisioned secure element, in addition to the existing features of the standard M5Stack Core2 and M5GO Bottom2. The Core2 for AWS is a feature rich, plug and play extensible, and secure hardware kit for learning and building a wide range of IoT applications.
To learn more about theAWS IoT EduKitprogram, visit
The Core2 for AWS comes with an ESP32-D0WDQ6-V3 microcontroller, which features dual Xtensa 32-bit LX6 cores and a main frequency up to 240Mhz, with 2.4GHz Wi-Fi. Comes with 8MB PSRAM and 16MB flash on board.
The main unit is equipped with a 2.0-inch capacitive touch screen that provides a smooth and responsive human machine interface. The built-in vibration motor can be used to provide haptic feedback or alerts. Onboard RTC module provides accurate time of day. Power is supplied through an AXP192 power management chip, to monitor and control power attributes of the device. The included TF card slot supports microSD cards up to 16GB. The on-board speaker is paired with an I2S digital audio interface power amplifier chip to reduce signal distortion and provide clearer audio output. There are independent physical power and reset (RST) buttons on the sides of Core2 for AWS, with 3 programmable touch buttons on the front of the screen.

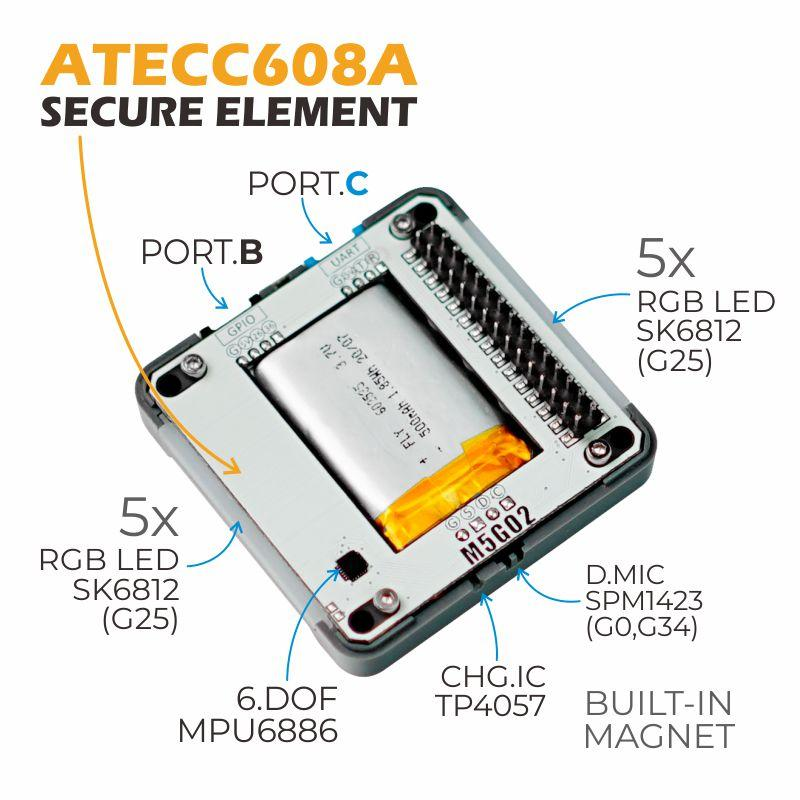

The M5GO Bottom2 for AWS adds additional features and security for IoT applications. The MPU6886 provides 6-axis internal IMU and temperature, the SPM1423 digital microphone captures audio for recording or creating voice applications, 10 individually programmable RGB LEDs via SK6812 to create customized and animated light effects, a 500mAh lithium-ion battery provides power on the go, the onboard Microchip ATECC608 Trust&GO crypto-authentication chip is pre-provisioned with secure keys to simplify connectivity to AWS and accelerate cryptographic computation.The CP2104 chip interface is reserved on the PCB of Core2 for AWS to interface with the lithium battery.
For all questions or issue regarding this device, pls visit our forum:
Power Management
Operations:
Power on: One click the power button on the left
Power off: Long press the left power button for 6 seconds
Reset: Click the RST button on the bottom side
Extensions
The vibration sensor of M5Core2 and M5 Base series are incompatible in mechanical design. Please do not stack them together.
Product Feature
Reference hardware kit for use with AWS IoT EduKit
ESP32-D0WDQ6-V3, supports 2.4GHz Wi-Fi
16M Flash, 8M PSRAM
Built-in ATECC608 hardware encryption chip
Capacitive touch screen
Built-in PDM microphone, power indicator, 6-Axis IMU, vibration motor, I2S codec, Amplifier, Speaker, RTC, power button, reset button, 10 x RGB LEDs
TF card slot (support up to 16GB)
Built-in 500mAh Lithium ion battery, equipped with power management chip
Validated through AWS Device Qualification Program
Compatible with multi-platform development:
Include
1x M5Stack Core2
1x M5GO Bottom2 for AWS
1x Type-C USB (50cm)
1x HEX KEY
Application
Internet of Things Controller
STEM Education
DIY projects
Specification

Resources
Parameter
ESP32-D0WDQ6-V3
240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash
16MB
PSRAM
8MB
Hardware encryption chip
ATECC608
Input voltage
5V @ 500mA
Host interface
TypeC x1, POGO PIN x1, I2C x1, GPIO x1, UART x1
Programmable LED light
SK6812*10
Button
Power button, RST button, virtual screen button * 3
Vibration reminder
Vibration motor
IPS LCD screen
2.0"@320*240 ILI9342C
Capacitive touch screen IC
FT6336U
Speaker
1W-0928
Microphone
SPM1423
I2S power amplifier
NS4168
IMU
MPU6886
RTC
BM8563
PMU
AXP192
USB chip
CP2104
DC-DC boost
SY7088
TF card slot
Support up to 16G
Lithium battery
500mAh @ 3.7V
Antenna
2.4G 3D antenna
Working temperature
32°F to 104°F (0°C to 40°C )
Net weight
101g
Gross weight
108g
Product size
54 x 54 x 24mm
Package size
90 x 60 x 27mm
Shell material
Plastic (PC )
