Description

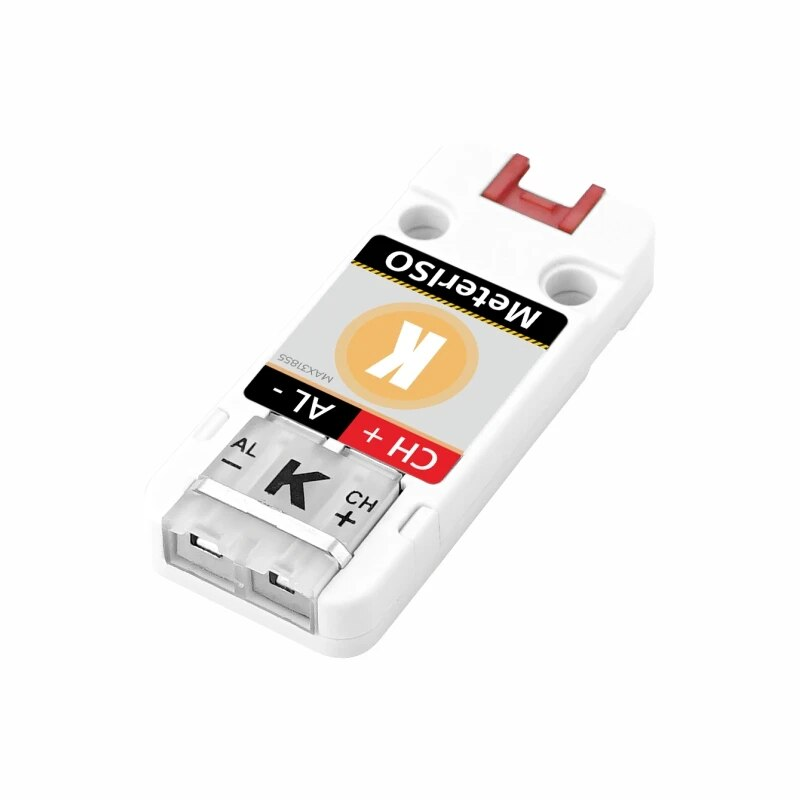

KMeterISO unitis an integrated K-type thermocouple sensor unit that integrates the functions of "acquisition + isolation + communication", using STM32F030+MAX31855KASA+T 14bit thermocouple digital conversion chip scheme to achieve high-precision temperature acquisition and conversion, MCU using STM32F030 to realize data acquisition and I2C communication interface, using CA-IS3641HW as a signal isolator. The unit supports access to thermocouple probes with a measurement range of -200°C to 1350°C, and adopts a universal standard K-type flat interface, which is convenient for subsequent replacement of different measuring probes to match different needs. This module is widely used in application scenarios such as temperature collection, control, and monitoring in industrial automation, instrumentation, power and electrical, heat treatment and other fields.

Features

  • STM32F030, high-performance ARM Cortex-M0 core, supports I2C firmware updates

  • MAX31855KASA+T: (14Bit ADC, 0.25°C Resolution, ±2% Accuracy)

  • Supported probe types: Type K - Supports access probe measuring range from -200°C to 1350°C

  • I2C communication interface addr: 0x66

  • Signal Isulate The CA-IS3641HW isolates input and output signals to improve stability, safety, and reliability.

  • Supported programming platforms: Arduino, UIFlow

Includes

  • 1x KmeterISO Unit

  • 1x K-type thermocouple probe (measuring range -50°C to 250°C, wire length 1m)

  • 1x HY2.0-4P cable (20cm)

Applications

  • Industrial automation

  • Instrumentation

  • Power appliances

  • heat treatment

Specification


Resources

Parameters

MCU

STM32F030, ARM Cortex-M0,最高48MHz,64K flash,4K SRAM

Temperature sensor chip

MAX31855KASA+T

Signal isolation chip

CA-IS3641HW

resolution

14 bit

Thermocouple Operating temperature range

-200-1350°C

Thermocouple type

K

Maximum sample rate

10 Hz

SPI interface clock frequency range

Up to 5 MHz

Internal temperature sensor accuracy

±2°C

measurement accuracy

±2°C

Anomaly detection

Open, short, and thermocouple low voltages

STM32F030

ARM Cortex-M0,48MHz,64K flash,8K SRAM

i2c address

0x66

Product Size

56 * 24 * 9.6 mm

Package Size

136mm × 92mm × 13mm

Product Weight

10.1g

Package Weight

22g

Related Link

Schematic

Module Size

Examples

Arduino

UIFlow

UIFlow Blocks

  • Init device I2C address

  • Get thermocoupie temperature

  • Get internal temperature

  • Get string thermocoupie temperature

  • Get string internal temperature

  • Is ready temperature measurement

  • Get device firmware version

  • Get device I2C slave address

  • Set device I2c slave address

LEARN AND DOCUMENTS


יחידת בידוד רשמית של Kmeter עם חיישן טמפרטורה של צמד תרמי (MAX31855)

מק"ט: aca23239-b053-4dab-accc-3fd013169bf3
18.40 ₪מחיר
