Description

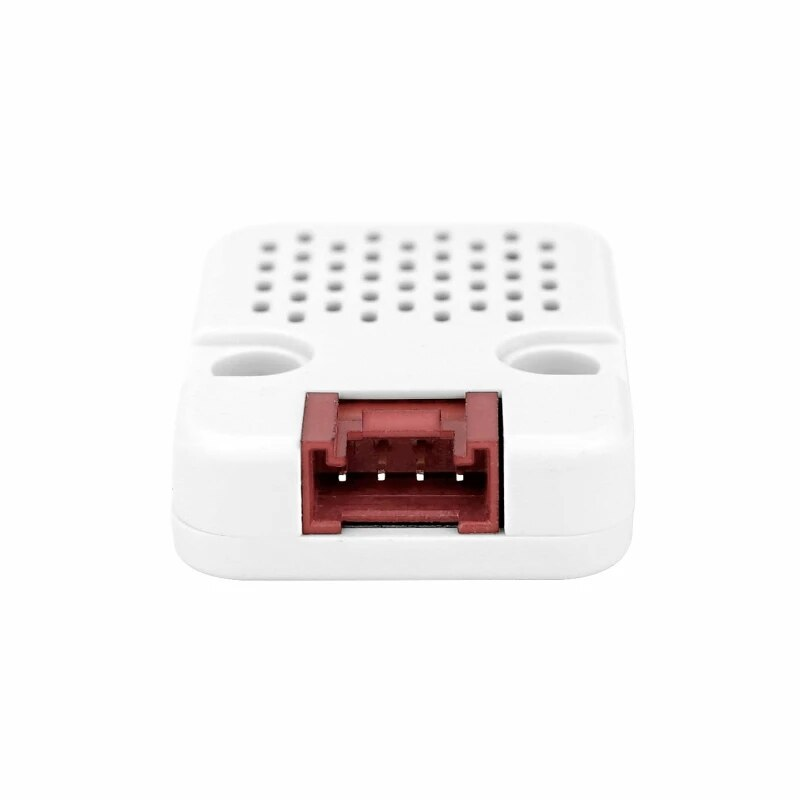

ENV IV is an environmental sensor that integrates the SHT40 and BMP280 sensors, designed for measuring temperature, humidity, and atmospheric pressure data. The SHT40 is a high-precision, low-power digital temperature and humidity sensor, supporting the I2C interface (SHT40 address: 0x44). The BMP280, on the other hand, is an absolute pressure sensor known for its high accuracy in atmospheric pressure measurements, with an I2C address of 0x76. This sensor unit finds applications in various fields, including meteorological monitoring, indoor environmental control, agriculture and horticulture, and industrial automation.

Features

  • Integrated sensors (temperature and humidity sensor SHT40, pressure sensor BMP280)

  • High precision and low power consumption

  • I2C communication interface (SHT40 I2C address: 0x44, BMP280 I2C address: 0x76)

  • real-time monitor

  • Multi platform programming Arduino UIFlow

Includes

  • 1x ENV IV Unit

  • 1x Grove Cable 20cm)

Applications

  • meteorological monitoring

  • Indoor environmental monitoring

  • Agriculture and Horticulture

  • Industrial automation field

Specification


Resources

Parameters

SHT40 measure range(Temperture/Humidity)

-40 ~ 125 °C,0 ~ 100 %RH

BMP280 measure range(Presure)

300 ~ 1100hPa

SHT40 measure accuracy

±0.1 °C,±1.5 %RH

BMP280 measure accuracy

±0.12hPa

communication protocol

I2C:SHT30(0x44),BMP280(0x76)

Shell material

Plastic ( PC )

Product Size

32/*24/*8mm

Package Size

136* 92*13mm

Product Weight

3.9g

Package Weight

9.3g

Schematic

PinMap

Module Size

ENV version scheme comparison


ENV I

ENV II

ENV III

ENV IV

ENV PRO

DHT12+BMP280

SHT30+BMP280

SHT30+QMP6988

SHT40+BMP280

BME688


Official ENV IV Unit with Temperature Humidity Air Pressure Sensor (SHT40+BMP280
